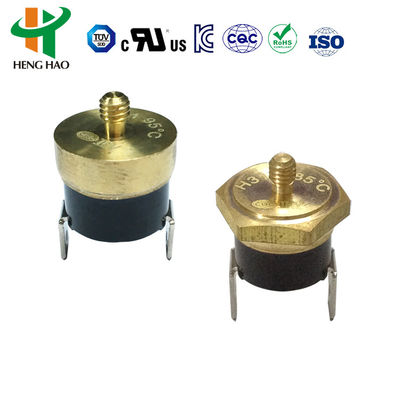

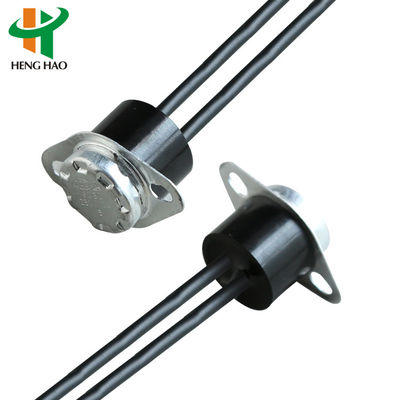

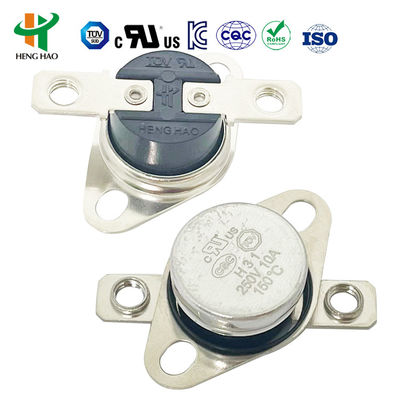

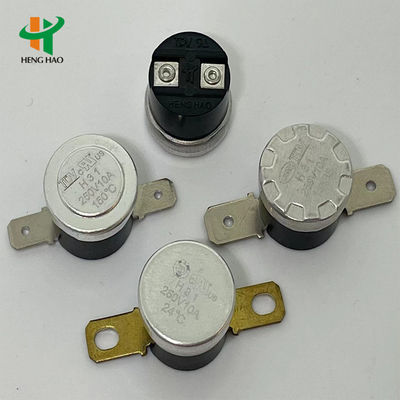

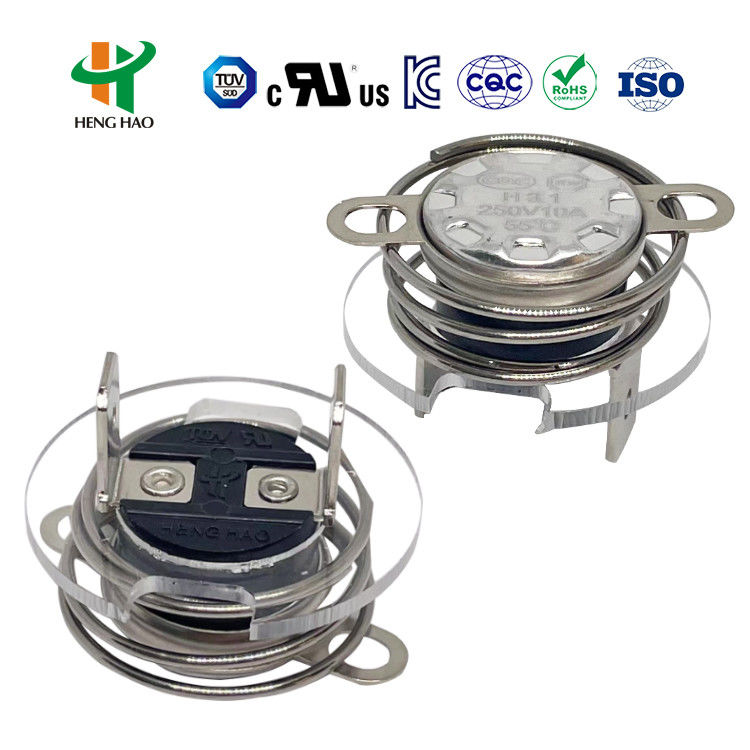

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

Large Image : 250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

Product Details:

Place of Origin:	CHINA
Brand Name:	HENHGAO
Certification:	UL
Model Number:	KSD301

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.18
Packaging Details:	2000PCS?CARTON
Delivery Time:	10~15WORKDAYS
Payment Terms:	T/T, D/P
Supply Ability:	1000000PER MONTH

Contact Now

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

Description

Life Cycle:

100000 Cycles

Voltage & Current:

250V 16A

Contact Type:

Normally Closed Or Normally Open

Switch Type:

Auto Reset Or Manual Reset

Highlight:

Thermal Cut Off Switch KSD301

,

250V KSD301 Thermostat

,

16A KSD301 Thermostat

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch

KSD302 thermal switch Principle and structure

The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.

250V 16A KSD301 KSD302 Thermostat Bimetallic Thermostat Thermal Cut Off Switch 0

KSD301 thermostat’s specification

Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
ActionTemperature	0~250℃
Recovery and action temperature difference	0 to 25 degrees, or according to client's request.
Temperature deviation:	±3 / ±5 / ±10 degree or according to client's request
Circuit resistance	≤50mΩ (Initial value)
Insulation resistanc	AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle	≥100000 times
Contact type	Normally closed or Normally open
Two kinds of mounting bracket	movable or immovable
Terminal type	a. Terminal type: 187series of 4.80.5mm and 4.80.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional
House	plastic or ceramic.
Temperature sensor face	aluminum cap or copper head.

KSD302 thermal switch Application

It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.

Open temp.	Reset temp.	Open temp.	Reset temp.	Open temp.	Reset temp.
-20℃+-5℃	5℃+-5℃	95℃+-5℃	80℃+-5℃	205℃+-5℃	175℃+-10℃
-15℃+-5℃	5℃+-5℃	100℃+-5℃	80℃+-10℃	210℃+-5℃	180℃+-10℃
-10℃+-5℃	5℃+-5℃	105℃+-5℃	85℃+-10℃	215℃+-5℃	185℃+-10℃
0℃+-5℃	-10℃+-5℃	110℃+-5℃	90℃+-10℃	220℃+-5℃	190℃+-10℃
5℃+-5C	-5℃+-5℃	115℃+-5℃	95℃+-10℃	225℃+-5℃	195℃+-10℃
10℃+-5℃	0℃+-5℃	120℃+-5℃	100℃+-10℃	230℃+-5℃	200℃+-10℃
15℃+-5℃	5℃+-5℃	125℃+-5℃	105℃+-10℃	235℃+-5℃	205℃+-10℃
20℃+-5℃	5℃+-5℃	130℃+-5℃	110℃+-10℃	240℃+-5℃	210℃+-10℃
25℃+-5℃	10℃+-5℃	135℃+-5℃	115℃+-10℃	245℃+-5℃	215℃+-10℃
30℃+-5℃	15℃+-5℃	140℃+-5℃	120℃+-10℃	250℃+-5℃	220℃+-10℃
35℃+-5℃	20℃+-5℃	145℃+-5℃	125℃+-10℃	255℃+-5℃	225℃+-10℃
40℃+-5℃	25℃+-5℃	150℃+-5℃	130℃+-10℃	260℃+-5℃	230℃+-10℃
45℃+-5℃	30℃+-5℃	155℃+-5℃	130℃+-10℃	265℃+-5℃	235℃+-10℃
50℃+-5℃	35℃+-5℃	160℃+-5℃	135℃+-10℃	270℃+-5℃	240℃+-10℃
55℃+-5℃	40℃+-5℃	165℃+-5℃	140℃+-10℃	275℃+-5℃	245℃+-10℃
60℃+-5℃	45℃+-5℃	170℃+-5℃	145℃+-10℃	280℃+-5℃	250℃+-10℃
65℃+-5℃	50℃+-5℃	175℃+-5℃	150℃+-10℃	285℃+-5℃	255℃+-10℃
70℃+-5℃	55℃+-5℃	180℃+-5℃	155℃+-10℃	290℃+-5℃	260℃+-10℃
75℃+-5℃	60℃+-5℃	185℃+-5℃	155℃+-10℃	295℃+-5℃	265℃+-10℃
80℃+-5℃	65℃+-5℃	190℃+-5℃	160℃+-10℃	300℃+-5℃	270℃+-10℃
85℃+-5℃	70℃+-5℃	195℃+-5℃	165℃+-10℃	Or according to client’s request
90℃+-5℃	75℃+-5℃	200℃+-5℃	170℃+-10℃	Or according to client’s request
