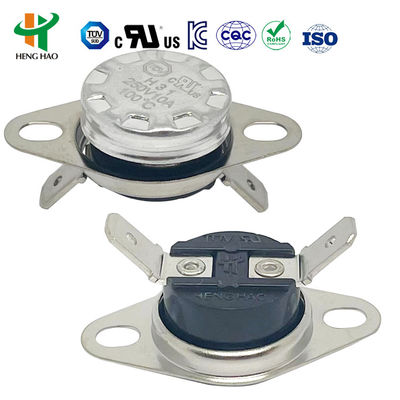

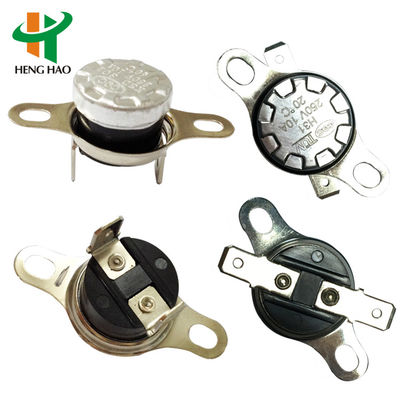

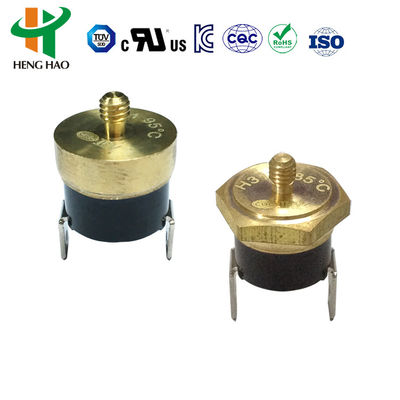

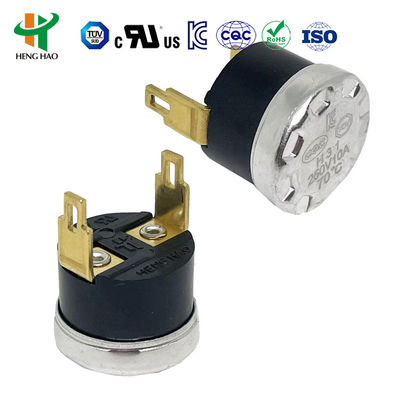

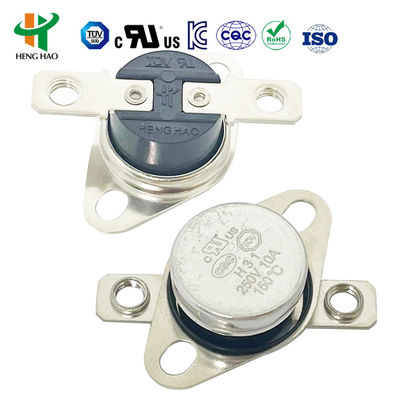

KSD301-G KSD301-R KSD301-V Temperature Switch Thermostat Bimetallic Thermostat

KSD301-G KSD301-R KSD301-V Temperature Switch Thermostat Bimetallic Thermostat
The main principle of KSD series thermostat is that one function of bimetal discs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, and then caused on of off the circuit finally. The main characteristic are the fixation of working temperature, the reliable snap action, less flashover longer working life and less radio interference.

KSD301 snap-action thermostat specification

KSD302 Difference of auto reset type and Manual reset type
3.1. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable; please don’t use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )
3.2. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point can auto reset and start working.
KSD303 snap-action thermostat Application
It is used as temperature control for household electric appliances and widely applied in coffee pots, snap-action thermostat, laminators,snap-action thermostat, steam irons, wind warmers, snap-action thermostat, water dispensers, etc.



The product UL,CQC,TUV and RoHS certification approval.
