PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor

PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor
PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor
PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor

Large Image :  PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor

Product Details:
Place of Origin: DONGGUAN
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.15 to USD1.5
Packaging Details: hezhang
Delivery Time: 7 to 10 days
Payment Terms: T/T, D/P, D/A, Western Union
Supply Ability: 1000000PCS PER MONTH
Contact Now

PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor

Description
B Value: 5K 10K 50K 100K PT100 J K Head: Metal Or Plastic
Wire: 2464 2651 2468 CL2 FT4 Terminal: 2p 4p Terminals
Sensor Type: NTC
Highlight:

NTC pt100 temperature probe

,

5K pt100 probe

,

10k pt 100 temperature sensor

PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor

Specification Name Scope Detection Condition
R25(nominal resistance value) 5K,8K,10K,15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85(material coefficient)(thermal-sensitivity index) 2500~5000K

Constant temperature 25℃±0.05℃

Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%) ±1,±2

Constant temperature 25℃±0.05℃

Constant temperature 50℃±0.05℃
∫(dissipation coefficient) ≥0.8mw/℃ Static in the air
T(thermal time constant) ≤25S Static in the air
Ta(Working temperature) -40℃~+250℃
Pn (rated power) 50mw within working temperature

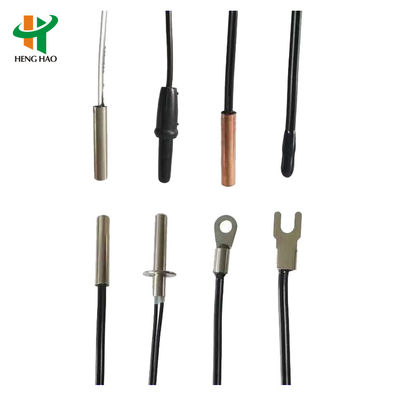

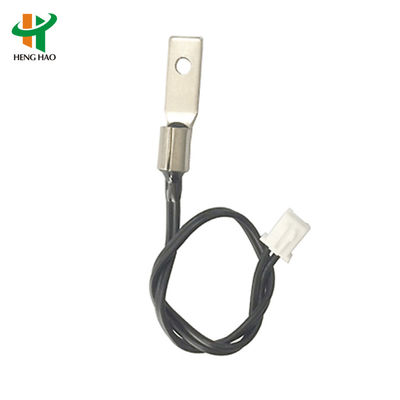

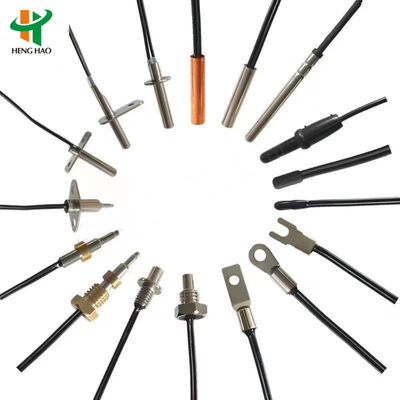

Case and head   Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client’s drawing
Lead wire   #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client’s request.
Terminal   Can be riveted according to the requirements of various terminals

PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor 0

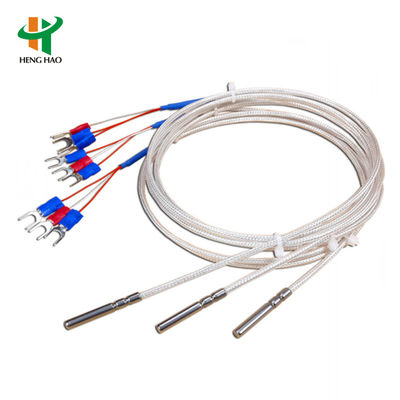

PT100/PT500/PT1000 Temperature sensor

​

Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50,PT1000,K,E,J,T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe 4*30mm, or according to client's request to design.
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire(-200~200ºC)
Three core high temperature wire(-40~450ºC)
Four fluorine wire (-50~150ºC)
Dia 3mm~16mm
terminal Y type, Pin,XH2.54 or according to client's request.
Level of protection IP68



PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor 1

PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor 2

PT1000 50K 3950K 3435K 3977K NTC PT100 Temperature Probe Temperature Sensor 3

Services

  1. Your inquiry will be replied within 12 hours;
  2. Well-trained and experienced staff are always at your service.
  3. Unique design products and many private mold product are waiting for your choice.
  4. Strictly protect your private information and your ideas of design.

FAQ



Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.



Q3. Do you have any MOQ limit for led waterproof string order?

A: At least 1 for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Tag:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
