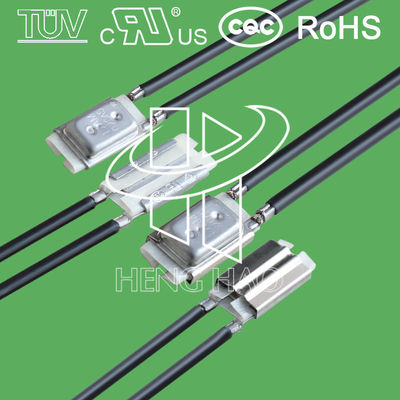

17AM 250V 10A Motor Temperature Cut Off Switch auto reset normally closed

17AM Thermal Protector Switch Motor Temperature Cut Off Switch Manufacturer Rated 250V 10A

1. 17AMH thermostat’s Principle and structure

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AM thermal protector’s Specification
   1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
   2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles
   3. Operating temperature range: 50-180°C
   4. Temperature tolerance: ±2°C±3°C±5°C
   5. Reset temperature: 10~45 degrees in off temperature decline.
   6. Working times: Over 10000 times
   7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

1. Trip off temperature in °C Code

The thermal protection switch is normally located on the A/C compressor housings. It. is used to prevent compressor damage (overheat) through internal friction. This switch senses the compressor case temperature and once this case. temperature reaches a predetermined figure the electrical circuit to the compressor.

1. Product Drawing

3. 17AM temperature protector’s Application

 all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

4. 17AM thermostat’s A/°C and A/T Graph:
